Numbat
Discover the perfect balance of size and functionality with the Explorex Numbat, a compact single-axle caravan designed for versatility.
The Explorex Numbat 5.4m single axle caravan offers a practical solution for adventurers seeking a lightweight yet fully equipped mobile home. This model features a well-thought-out interior layout, providing ample space for sleeping, dining, and storage. Its narrow width of 2.20m makes it ideal for navigating tighter tracks without compromising on comfort. The Numbat is perfect for those who desire a capable caravan that’s easy to tow and ready for any adventure.
5.4m Single Axle 2.20m Wide - ATM 2,800/3,500kg
Interactive
3D Tour
Floorplan
SPECIFICATIONS
Chassis & Body Features
Fully welded structural steel frame construction
Hot-dip galvanising to full chassis
integrated rear bumper
4” A-Frame for 5.4m models
6” A-Frame for 5.9m models and above
4” Chassis Rail
Flat brace off-road strengthener standard across all models
16” Wheels
Tyres: Off-Road models: 245/70R16
Extreme models: 265/75R16
Spare wheel: Off-Road & single-axle models: 1X
Extreme models: 2X
Standard suspension is model-specific
Simplicity Load Share on Off-Road models; or Cruisemaster fully independent coil with twin shock on our Extreme range
2 X 95L Fresh water tanks
1 X 95L Grey water tanks
2 X Jerry can holders
2 x 9kg Gas bottles
Mesh stone guard
Steel rear skid plate
Scrub bars
2 x Recovery points
Copper tap on A-frame
Single or double step (model specific)
Gas bayonet
Cruisemaster DO35 Off-Road hitch; or the DO45 (model specific)
ATM range single axle 2800kg and Tandem Axle 3200kg, 3500kg.
Higher ATMs available upon request

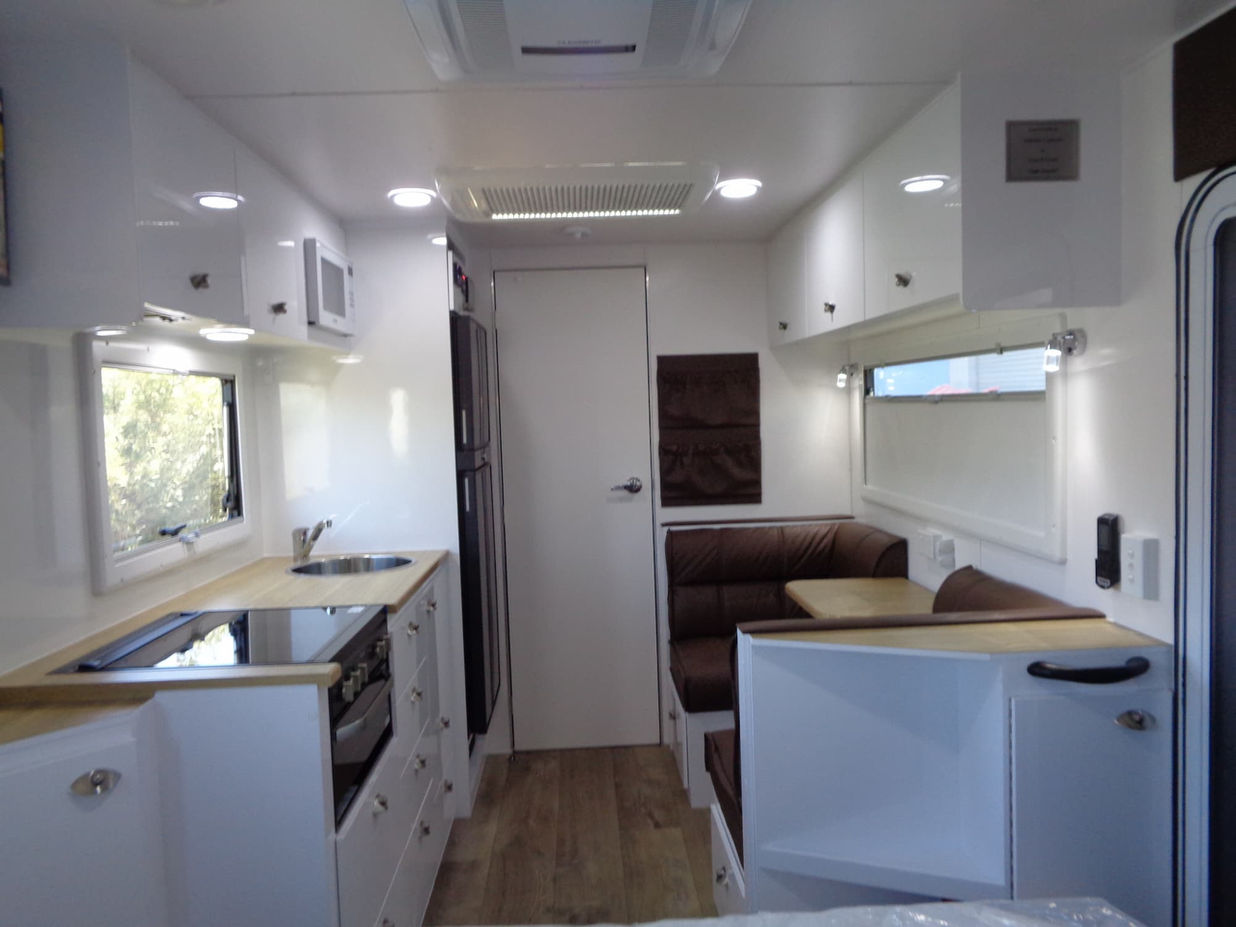

Interior Features
Dometic fridge compressor (12/240V)
Fusion AM/FM radio and media player
24” smart TV
Thetford cook-top and grill
6.0–6.6m Extreme models include full oven
Microwave oven
Washing machine standard in all models except Numbat.
Full ensuite with separate shower, toilet, ceramic vanity & mirror
Toilet
Shower module (fully molded)
Ceramic ensuite basin
Bi-fold pull-out table (model specific)
Splashback to kitchen bench
15mm plywood cabinetry
Soft-close steel draw runners
Customer name plaque
Leather seating available in Café, L-shape or Club style (model specific)
2 or 3 bunk options for family models
External Features
Platinum crystal silver aluminium cladding or premium composite smooth DiBond panel (model specific)
600mm high waistline checker plate body protection
One piece aluminium roof sheet
Tunnel boot and/or storage lockers
Explorex hatch doors to the above
Dometic reverse-cycle air conditioner
Dometic roll-out awning
Swift slide-out kitchen (BBQ and sink)
Heki roof hatch (Extreme models only)
Bathroom exhaust hatch with fan
Jack TV antenna
External speakers
HWS gas and 240V electric
Drop down picnic table
Generator carry box
Power Features
2 X 200w Solar panels
1 X 200ahr 12V Lithium battery
Victron 3000w Inverter/Charger
Victron Cerbo G X touchscreen monitor
Victron Solrar regulator and DCDC charger
Optional lithium battery packages are available
* Standard features and design are subject to change. Appropriate towing vehicles required for high ATM weights.
The Numbat is a versatile caravan that offers the perfect mix of compact size and comprehensive features. It’s easy to tow and navigate through challenging terrains while still providing the comfort and amenities needed for any adventure.
